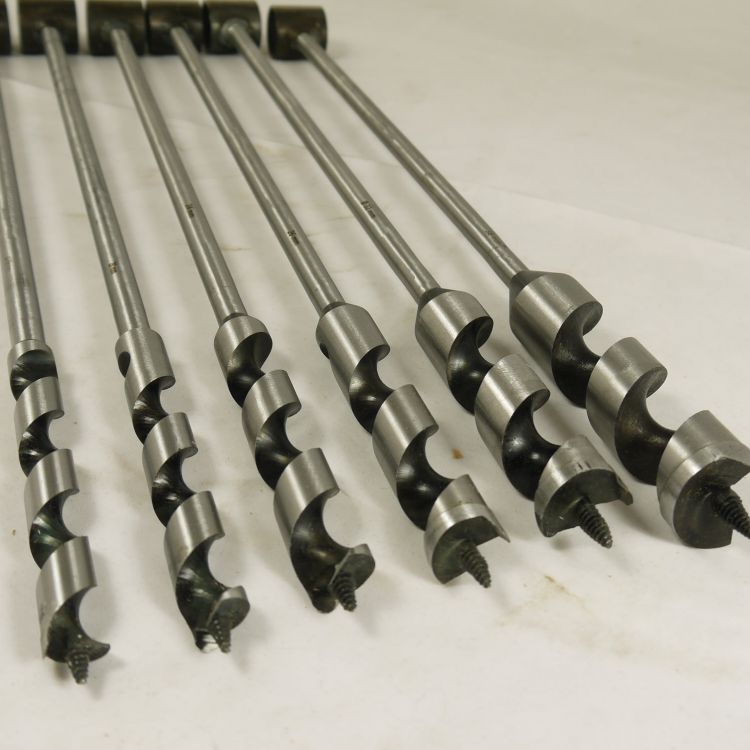

The Famag Lewis Pattern Screw Auger is a tool for drilling long holes or for greenwood projects such as benches, often called T Bar Augers or Barrel Eye Augers.

Six popular sizes available:

• 18mm / less than 3/4"
• 20mm / greater than 3/4"
• 24mm / less than 1"
• 26mm / greater than 1"
• 32mm / greater than 1 1/4"
• 38mm / pretty close to 1 1/2"

SELECT FROM THE DROP-DOWN BOX ABOVE

NOTE: if you want to match these up with Veritas Power Tenon Cutters you will need to bear in mind the variances above.

A fine lead screw pulls the auger through the wood, and has one main cutting edge to sharpen.  Made from alloyed steel.

Overall length 600mm / 23 1/2

Spiral length 160mm / 6 1/4

The internal diameter of the eye for the handle is 36mm.

The Famag Screw Auger Lewis Pattern will require a wooden handle which is not supplied automatically but available as an option if selected above.
