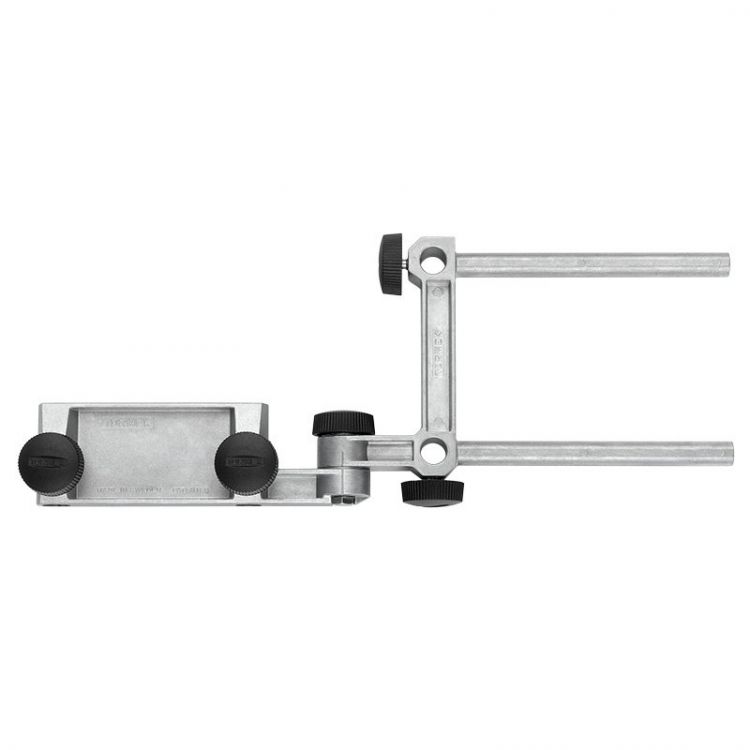

The MB-102 Multi Base by Tormek allows you to sharpen on the side of Tormek's diamond grinding wheels. This results in a completely flat bevel, which is preferable in certain applications. The MB-102 Multi Base is fully adjustable for optimal settings for each tool and jig. It also converts the horizontal mounts to vertical, for easier access when sharpening knives edge trailing, and for guided honing using knife jigs (so-called Frontal Vertical Base or FVB).

Instructions for use can be downloaded here.

Why MB-102 Multi Base?

• Allows you to sharpen a perfectly flat bevel on the flat side of your diamond grinding wheel.
• Great for sharpening flat bevels on luthier knives, Kiridashi knives, V-gouges, chip-carving knives, Japanese planes, and more.
• Allows frontal vertical mounting of universal support - better access for sharpening knives edge trailing, and for guided honing using knife jigs.
• Fits the Tormek T-8, Tormek T-4, and older models.

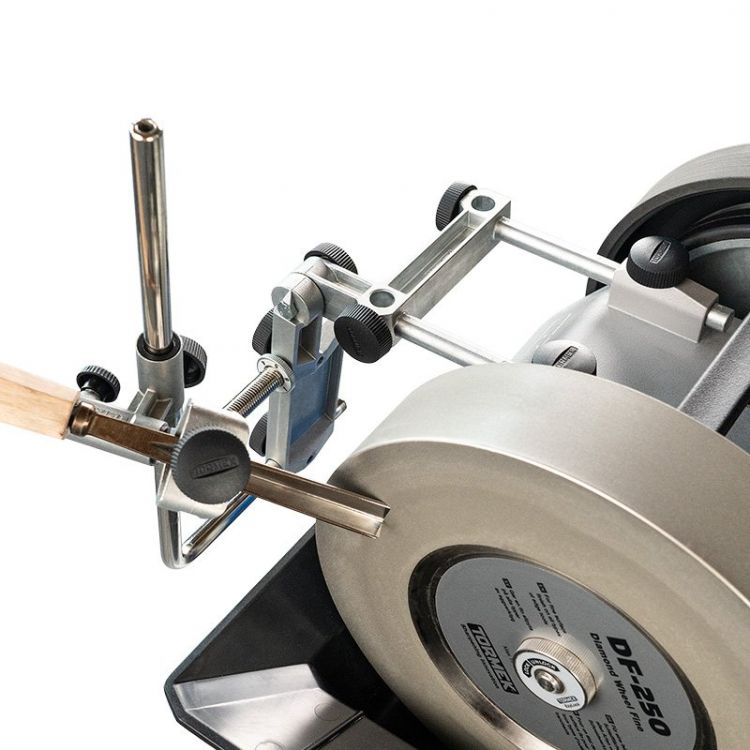

Provides a completely flat bevel

When you sharpen on top of the curved part of the grinding wheel you get a slightly concave bevel. For some tools, a flat bevel is preferable. You can achieve this by sharpening against the flat side of your diamond grinding wheels.

Please note that sharpening on the side of the grinding wheel with the MB-102 Multi Base is recommended only with diamond grinding wheels. We don't recommend it for sharpening with grindstones as they wear down and require truing, which isn't possible on the side.

Fully adjustable to fit your specific tool

The MB-102 Multi Base has an adjustable joint which allows you to fix the sharpening position based on the optimal setting for each tool and jig. You can mount the MB-102 Multi Base in either the vertical or horizontal mounts on your machine, whichever works best for your tool, jig, or stance.

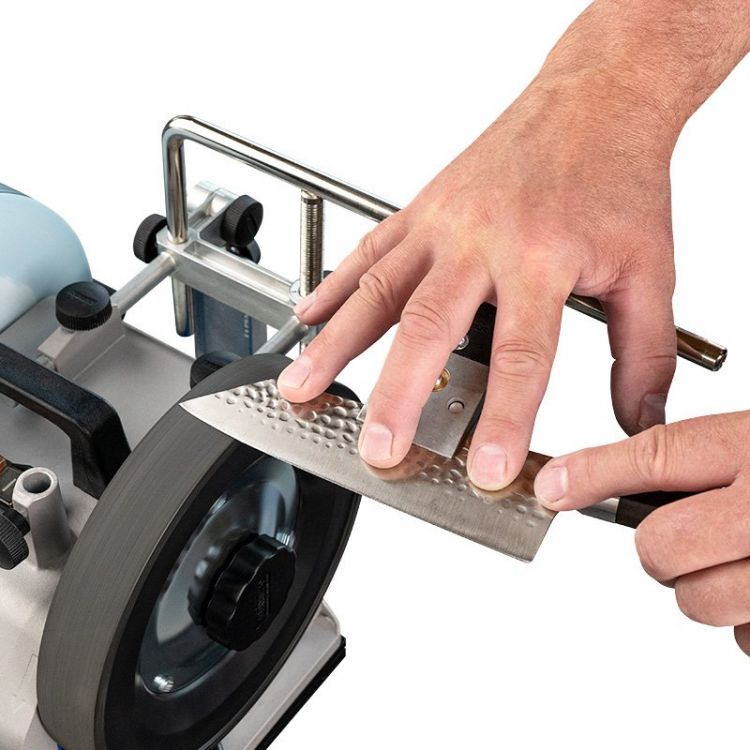

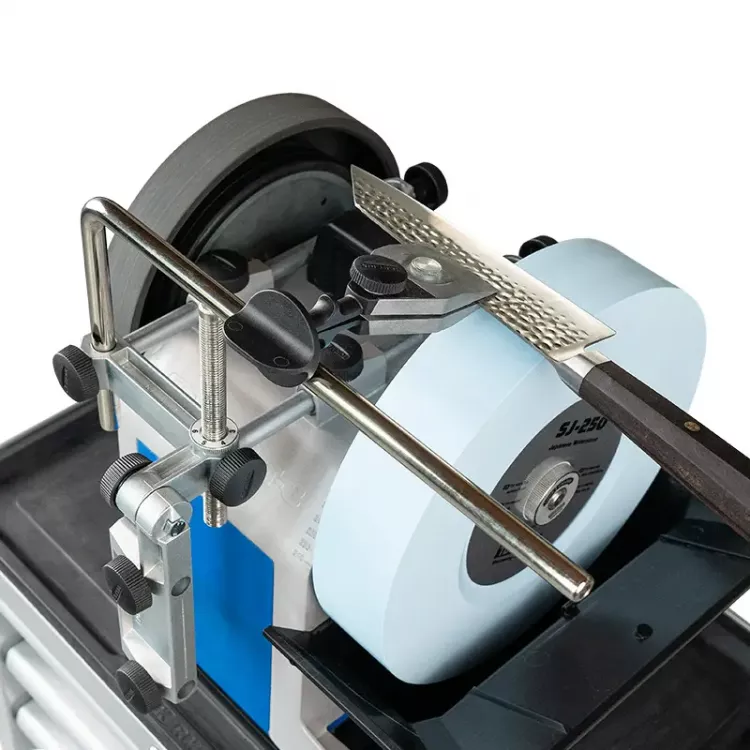

Sharpen knives edge trailing and guided honing with knife jigs

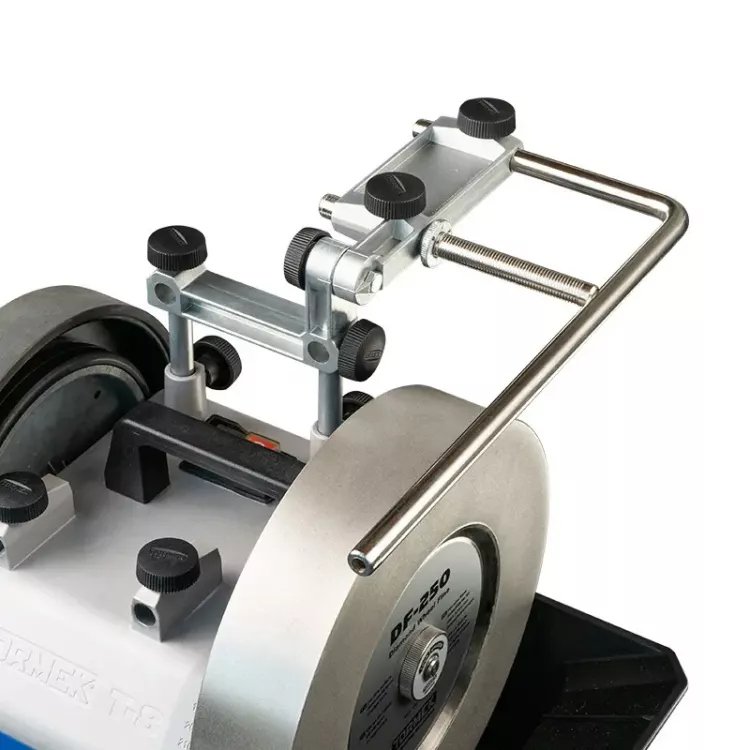

When mounting the MB-102 Multi Base horizontally on your Tormek machine, you can mount the universal support vertically in front of the machine. Basically, you convert the horizontal mounts on the machine to become vertical.

This provides better access for sharpening knives with the edge in the same direction as the rotation of the grinding wheel (edge trailing) and for guided honing using knife jigs. Many users prefer to sharpen edge trailing on the Japanese Waterstone, to make sure that the edge don't catch the softer stone.

Works with most Tormek jigs

The MB-102 Multi Base can be used with most Tormek jigs. It is designed to work best with these jigs:

• KJ-45 Centering Knife Jig
• KJ-140 Wide Centering Knife Jig
• SVM-00 Small Knife Holder
• SE-77 Square Edge Jig
• SVS-38 Short Tool Jig
• SVD-186 R Gouge Jig
• SVS-50 Multi Jig

• SVD-110 Tool Rest
• AX-40 Axe Jig
