PRICED EX-WORKS, DELIVERY IS NOT INCLUDED. CONTACT US HERE WITH YOUR POST CODE FOR AN ACCURATE DELIVERY QUOTATION.

A MADE TO ORDER ITEM WITH A LEAD TIME OF APPROX 6-8 WEEKS

UK mainland delivery only. Sorry!

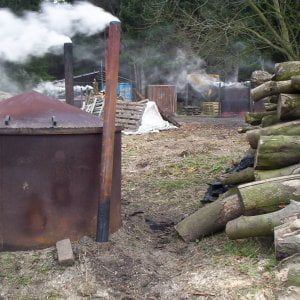

CHARCOAL RING KILN 6' is a good size to choose for lower output commercial charcoal production.

Includes ports, chimneys and lid.

A lower output portable kiln, which can be operated in conjunction with other similar kilns for increased efficiency.  Whilst one or more kilns are burning others can be emptied and recharged.

Using native hardwoods it should be possible to achieve an average output of 150kg per burn.

An EXTENSION RING 6' Charcoal Kiln can be added at a later date to increase output by approx 33%.  The original lid will still fit.

Contact us if you are unsure that the CHARCOAL RING KILN 6' is the right size for your situation.

We used these commercial quality ring kilns made by this manufacturer in our own charcoal business for more than 12 years.  We can unreservedly recommend them.

Made from mild steel of various thicknesses: (NOTE: ALL DIMENSIONS ARE APPROXIMATE)

• 1 x Ring - 3mm,  1830mm / 6' diameter x 1000m / 39" high (Top flange - 5mm, Bottom Flange - 10mm)
• 1 x Lid - 1.6mm with 25mm x 5mm stiffening flange
• 6 x Ports -  5mm
• 3 x Chimneys (100mm diameter, 1.8m /6' long ERW tubing)

It is always advisable to handle and move these heavy kilns with machinery or at least two people.
