Woodsmith
Charcoal Ring Kilns

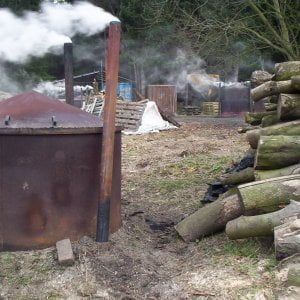

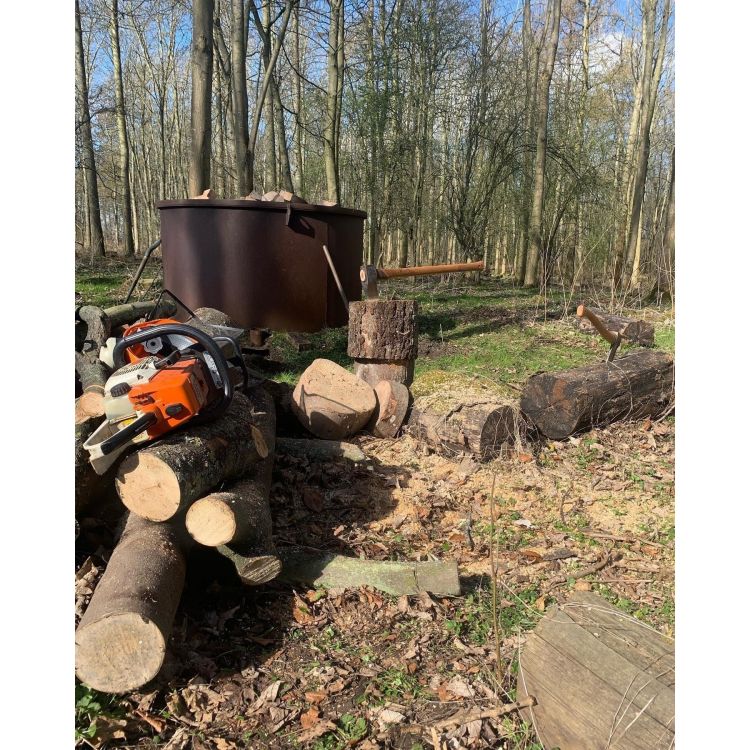

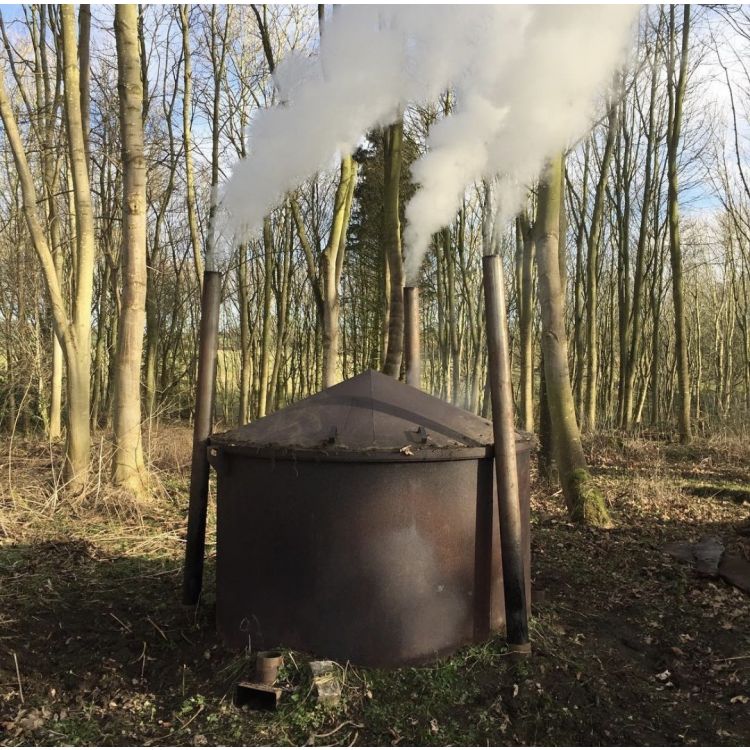

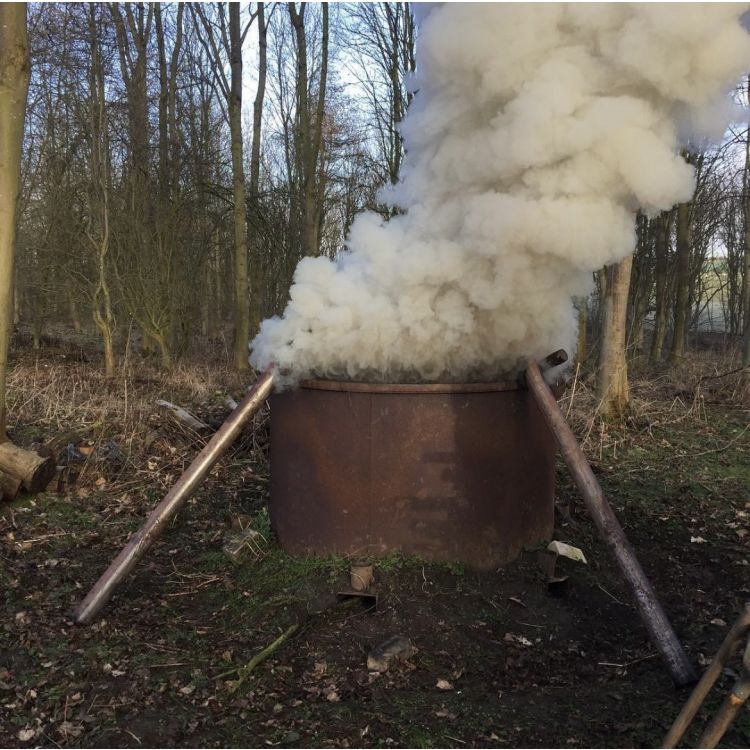

Available in 5ft, 6ft, 7ft, and 8ft diameters, these kilns offer a straightforward, reliable way to produce high-quality charcoal. The smaller sizes are easier to handle and ideal for lower output or tighter access, while the larger kilns suit higher-volume production.
All sizes remain relatively portable and can be used individually or as part of a multi-kiln setup - allowing one kiln to burn while others are emptied and recharged for a more efficient workflow. Extension rings are available for selected sizes, allowing you to increase capacity at a later date while continuing to use the original lid. If you are looking to produce charcoal on a smaller scale or just for your own hobby production - take a look at our Mini or Midi Kilns.
Using native hardwoods, expected output will vary by size, but rough guidelines as well as technical specifications are provided in the table below.
If you’re unsure which size is right for your setup, feel free to get in touch - we’re happy to advise. Full setting up and lighting instructions are provided upon purchase.
| Woodsmith Kiln | Ring 3mm mild steel with 5mm top stiffening flange & 10mm bottom stiffening flange | Lid 1mm mild steel with a 25mm x 5mm stiffening flange and x4 lifting handles | Ports 5mm mild steel. 16 1/2" (L) x 6 3/4" (W) x 4" (D) with a 4" spigot | Chimneys 1.8mm mild steel ERW tubing; 6ft long, 4" diameter | Output approx weight per burn |
| 5ft Ring Kiln | 34" height 5ft diameter | x1 | x6 | x3 | 110kg |
| 6ft Ring Kiln | 39" height 6ft diameter | x1 | x6 | x3 | 150kg |
| 7ft Ring Kiln | 39" height 7ft diameter | x1 | x8 | x4 | 200kg |
| 8ft Ring Kiln | 39" height 8ft diameter | x1 | x8 | x4 | 250kg |
Important notes:
- It is always advisable to handle and move these heavy kilns with machinery or at least two people.
- UK Mainland delivery only. We cannot deliver these kilns overseas.
- All kilns are made to order, please expect a minimum lead time of 6-8 weeks.
- We do not have a standardised shipping cost available for these kilns, as is based on distance from our haulage companies depot based in central England; shipping can be between £400 - £500 incl. VAT for addresses either in Scotland or the South Coast. Please email us with your post code for an exact shipping quote prior to purchase. This payment will be taken separately if you pay for the kiln via the website, we do not have the facility to integrate the calculation into the site at this time due to the volatility of fuel surcharges.
- Collection by customer is possible, but we do require that you collect from the manufacturer within 2 weeks from notice of manufacture and we may take a refundable holding deposit for delivery in case kiln is not collected within advised timeframe. Please email us for further details.
About Woodsmith:
At Woodsmith, we pride ourselves on offering the world's finest tools, books, and devices for woodcraft. But our identity goes beyond retail; we are, quite literally, a family of passionate craftspeople and makers. Our in-house products come directly from Maurice, Woodsmith's founder and a craftsman of 30 years; his daughter Izzy; our skilled team, including coppice workers and bowl turners; or our talented local leatherworker. Each item embodies our commitment to quality and the ongoing tradition of green woodworking.
Occasionally, we collaborate with talented blacksmiths, toolmakers, and fabricators - prioritising local makers whenever possible - to produce specially commissioned products inspired by our own designs.
