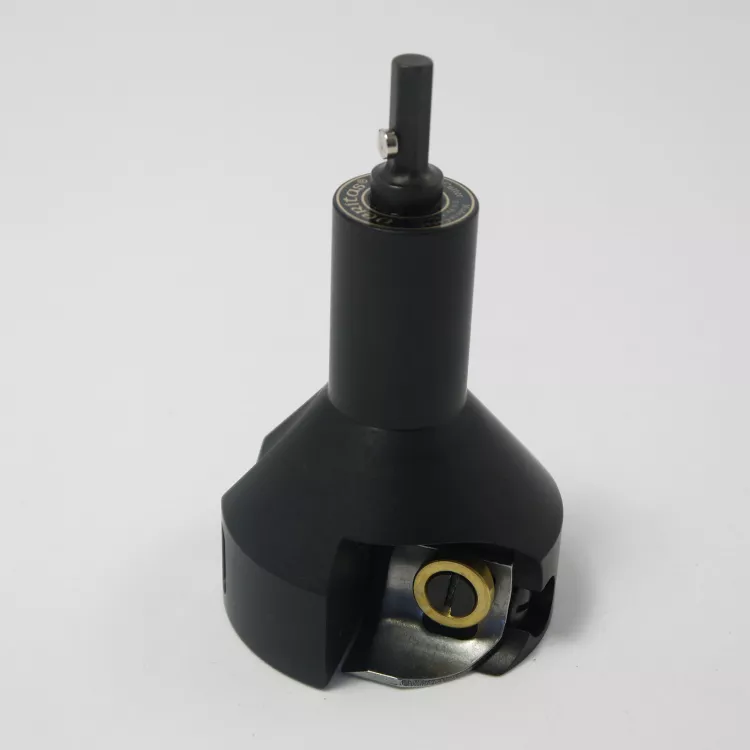

Veritas Power Tenon Cutter - a tool designed to quickly create accurate round tenons.
Can be used either in an electric drill or a traditional hand brace.
Typically used on the ends of coppice material to produce rustic furniture.
The anodized aluminum body is designed to run vibration-free if driven with an electric drill. Features a steel shank and a high-carbon steel cutting blade.
Eight Imperial sizes available: (all conversions into metric are approx.)
- 5/8" (16mm)
- 3/4" (19mm)
- 7/8" (22.2mm)
- 1" (25.4mm)
- 1 1/4" (31.75mm)
- 1 1/2" (38mm
- 1 3/4" (44.4mm)
- 2" (51mm)
SELECT FROM THE DROP-DOWN BOX ABOVE
NOTE: the most accurate mortices for tenons created by these tools are made with Imperial drill bits. If you use Metric augers, then the small differences needs to be considered.
NOTE: Depending on the size of the Veritas POWER TENON CUTTER, the maximum length of the tenon will vary.
- Sizes 5/8" - 1" cuts maximum 2 3/4" long tenons
- Sizes 1 1/4" - 2" cuts maximum 4 1/4" long tenons.
All sizes have hex shanks; sizes 5/8" to 1" require 3/8" (or larger) chuck Sizes 1 1/4" to 2", which require more torque to drive, are for use in larger drills with 1/2" or larger chuck.
Built-in spirit level in each tool.
Blade is adjustable to cut exact tenon size required. In both dry and green wood.
The back end of blade is contoured to avoid anything extending beyond the revolving body, increasing safety.
Includes built-in honing guide for easy blade sharpening on drill-press mounted drum sander.
Not for use in a drill press.
Veritas Brace Adapters available for sizes up to 1" if you are using an older hand brace with a two or four jaw chuck.
