Star-M’s Extra Long Power Auger Bits are designed for deep, accurate boring in both green and seasoned wood - ideal for timber framing and log building.

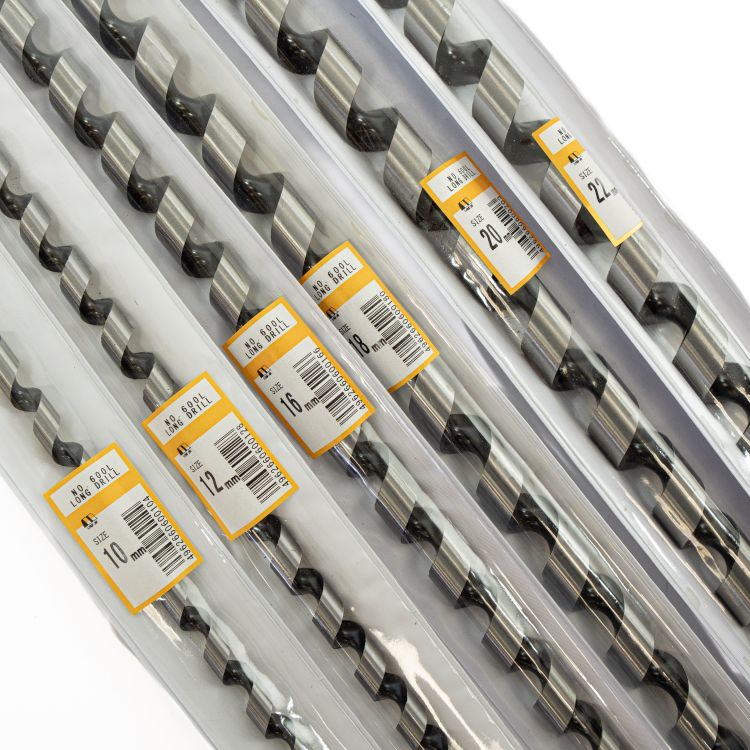

Available in two extended lengths (400mm and 600mm) and diameters from 10mm to 22mm, these bits are excellent for creating through-holes in large or multiple timbers, or for reaching deeper than standard auger bits allow.
Star-M’s advanced manufacturing techniques, rigorous quality checks and use of premium materials ensure that each drill bit excels in five key areas:
1. Accuracy
2. Cutting speed
3. Runout prevention
4. Cutting resistance
5. Durability
Each bit features:

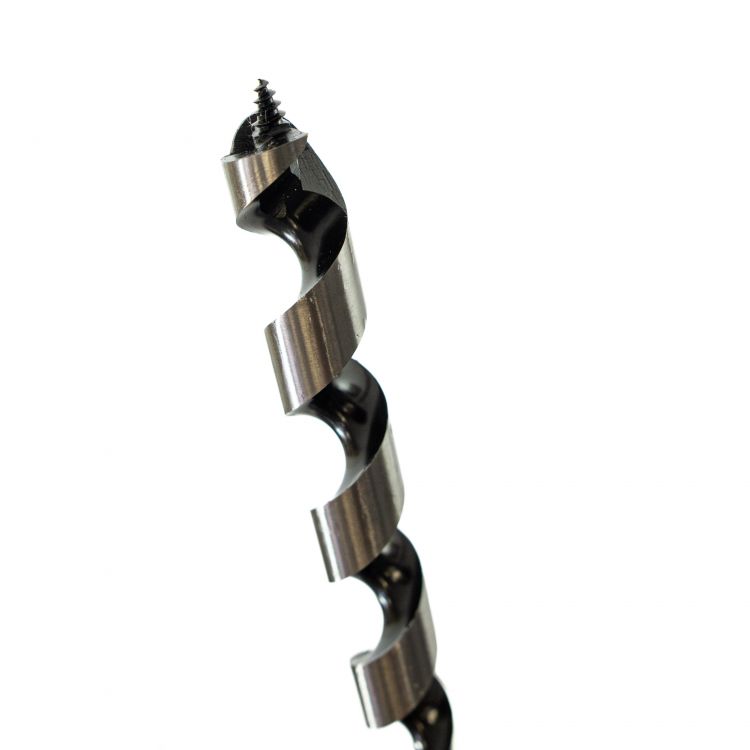

- A burr-free lead screw for smooth, accurate starts
- Single spur for minimum resistance whilst making clean and accurate cuts
- Hand finished cutting edge
- An open spiral flute for fast chip ejection, especially during deep boring
- A hexagonal shank for a secure grip in your drill
- High carbon steel 53 HRC
- Easily sharpened with file
- Made from high-carbon steel and manufactured in Japan with Star-M’s renowned precision and reliability.
See the sizing table for full specifications.
No.4 - 400mm:
Diameter (mm) | | Overall Length (mm) | | Working Length (mm) | | Hex Shank |
---|
10 | 400 | 300 | 10mm |
12 | 400 | 300 | 10mm |
16 | 400 | 300 | 12mm |
18 | 400 | 300 | 12mm |
20 | 400 | 300 | 12mm |
22 | 400 | 300 | 12mm |
No.6 - 600mm:
Diameter (mm) | | Overall Length (mm) | | Working Length (mm) | | Hex Shank |
---|
10 | 600 | 500 | 10mm |
12 | 600 | 500 | 10mm |
16 | 600 | 500 | 12mm |
18 | 600 | 500 | 12mm |
20 | 600 | 500 | 12mm |
22 | 600 | 500 | 12mm |
About Star-M:
Founded in Japan in 1923, Star-M has become a leading manufacturer of high-quality drill bits and woodworking accessories. Known for their precision engineering and long-lasting performance, Star-M tools are trusted by craftspeople around the world – from cabinetmakers and carpenters to green woodworkers and chairmakers.
